AVAILABLE

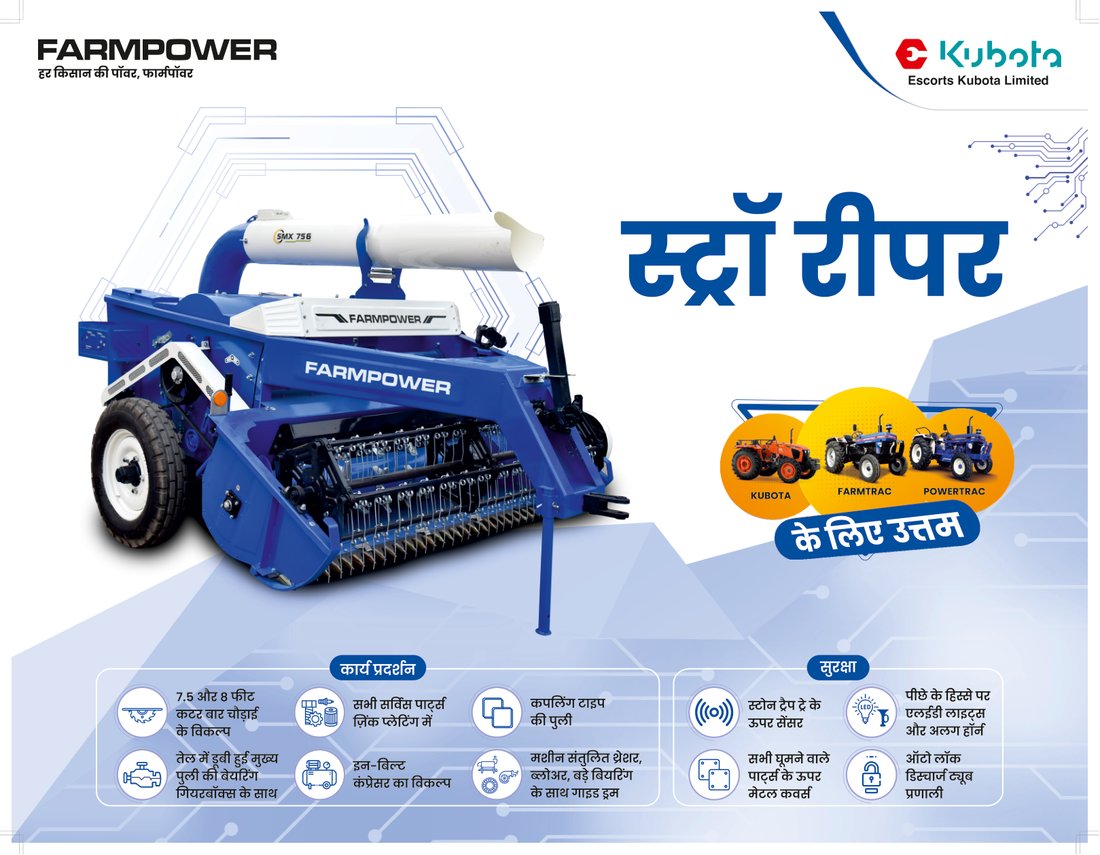

Tap a thumbnail to view the brochure pages.
Implements & Machinery / Straw Reaper
FARMPOWER · Escorts Kubota
SR57 / SR60
FARMPOWER Straw Reaper
Tractor-Mounted Straw Reaper (SR57 / SR60)
Best Match: Kubota, Farmtrac, Powertrac
7.5–8 ftCutter Bar
750 mmDrum Dia.
720–750Drum RPM
2Blowers
The FARMPOWER Straw Reaper (SR57 / SR60) is a tractor-mounted implement that chops and spreads crop residue after harvesting. By breaking down wheat and paddy straw into fine pieces and spreading it uniformly, it prepares the field for the next crop quickly — eliminating the need for stubble burning. This eco-friendly solution improves soil health, retains moisture, and complies with government norms on crop residue management. Compatible with 45–60 HP tractors.
Overview
The FARMPOWER Straw Reaper collects and processes leftover straw after harvesting, available in 7.5 ft (SR57) and 8 ft (SR60) cutter-bar widths. It runs an oil-immersed main-pulley bearing gearbox and a machine-balanced thresher, blower and large bearings with a guided drum. Safety features include a sensor above the stone-trap tray, metal covers over all rotating parts, an auto-lock discharge-tube system, and LED lights with a separate horn at the rear.

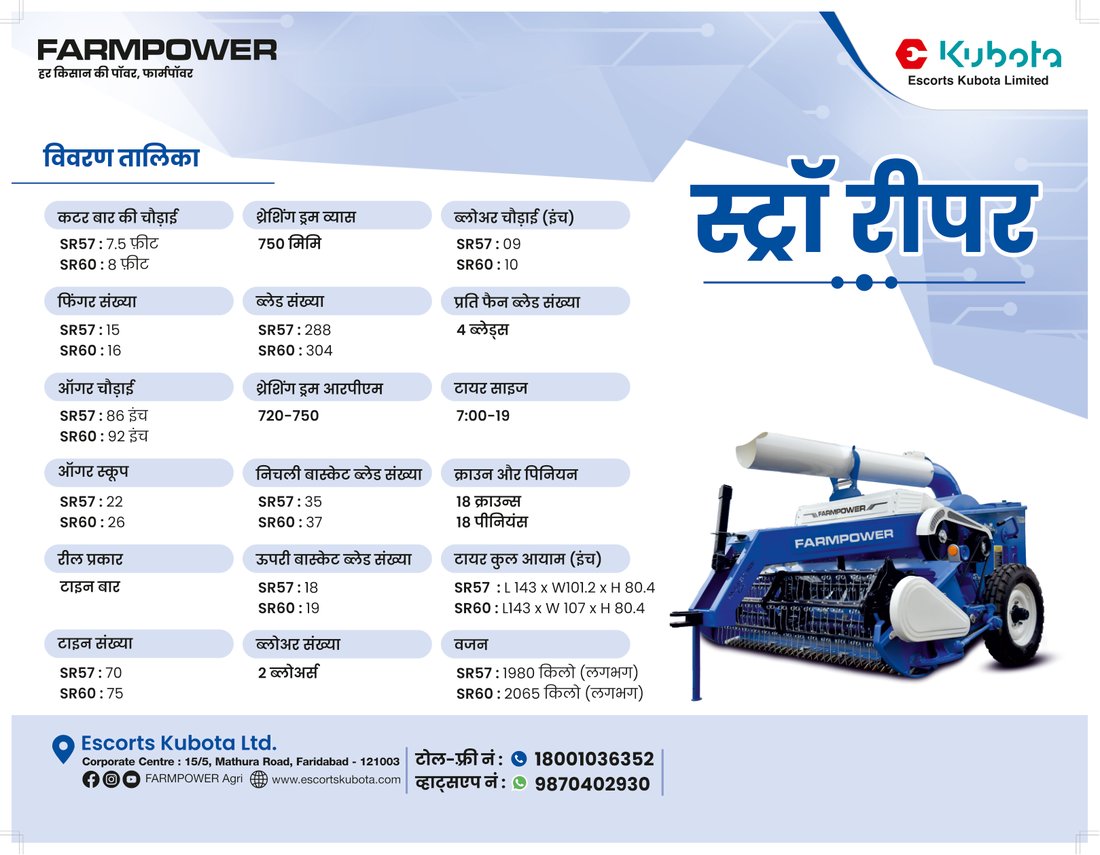

Technical Specifications
| Specification | SR57 | SR60 |
|---|---|---|
| Cutter Bar Width | 7.5 ft | 8 ft |
| No. of Fingers | 15 | 16 |
| Auger Width | 86 inch | 92 inch |
| Auger Scoop | 22 | 26 |
| Reel Type | Tine Bar | Tine Bar |
| No. of Tines | 70 | 75 |
| Threshing Drum Diameter | 750 mm | 750 mm |
| No. of Blades | 288 | 304 |
| Threshing Drum RPM | 720–750 | 720–750 |
| Lower Basket Blades | 35 | 37 |
| Upper Basket Blades | 18 | 19 |
| No. of Blowers | 2 Blowers | 2 Blowers |
| Blower Width | 09 inch | 10 inch |
| Blades per Fan | 4 Blades | 4 Blades |
| Tyre Size | 7:00-19 | 7:00-19 |
| Crown & Pinion | 18 Crowns / 18 Pinions | 18 Crowns / 18 Pinions |
| Tyre Overall (L×W×H) | 143 × 101.2 × 80.4 in | 143 × 107 × 80.4 in |
| Weight | ≈ 1980 kg | ≈ 2065 kg |
Key Highlights
📏
7.5 & 8 ft Cutter BarTwo cutter-bar width options to match field size and crop volume.🛢️
Oil-Immersed GearboxMain-pulley bearing runs in oil; all service parts in zinc plating.📡
Stone-Trap SensorSensor above the stone-trap tray with metal covers over rotating parts.💡
LED Lights & Auto-Lock TubeRear LED lights with separate horn and an auto-lock discharge-tube system.
